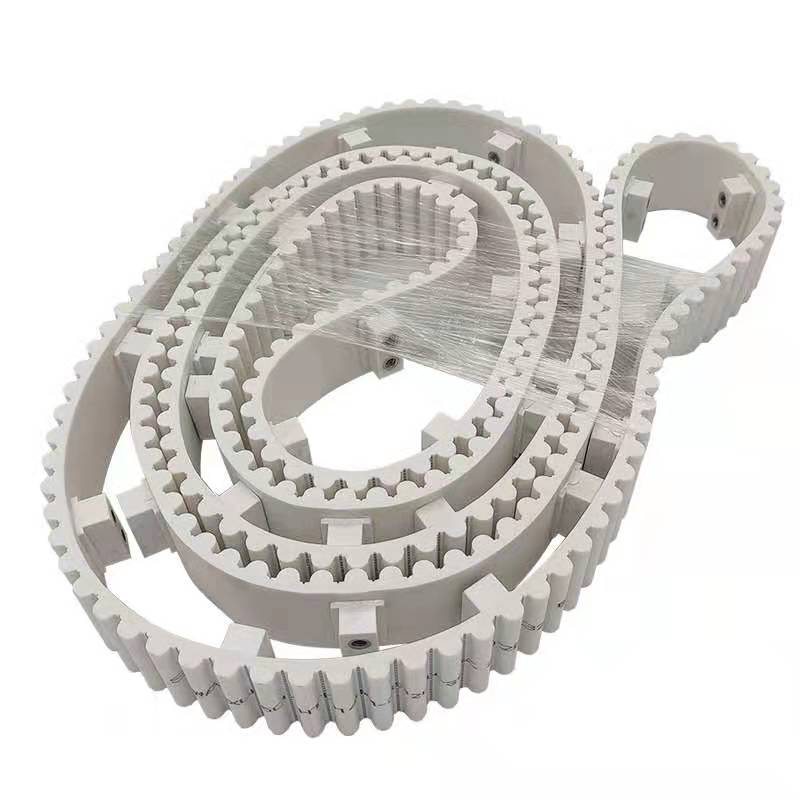

HTD S L XL H XH 3M 5M 8M T5 T10 T20 AT5 AT10 AT3 AT20 endless seamless PU timing belt with steel cord[/caption]Cleated timing belt White PU polyurethane steel wire core timing belt

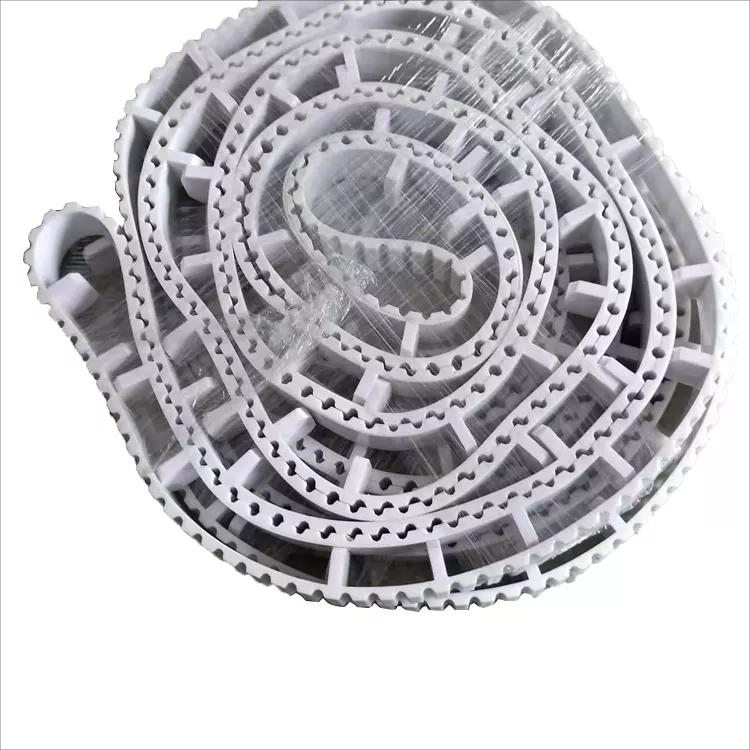

Powerful PU Toothed Belt Synchronous Belt with cleats/ profiles

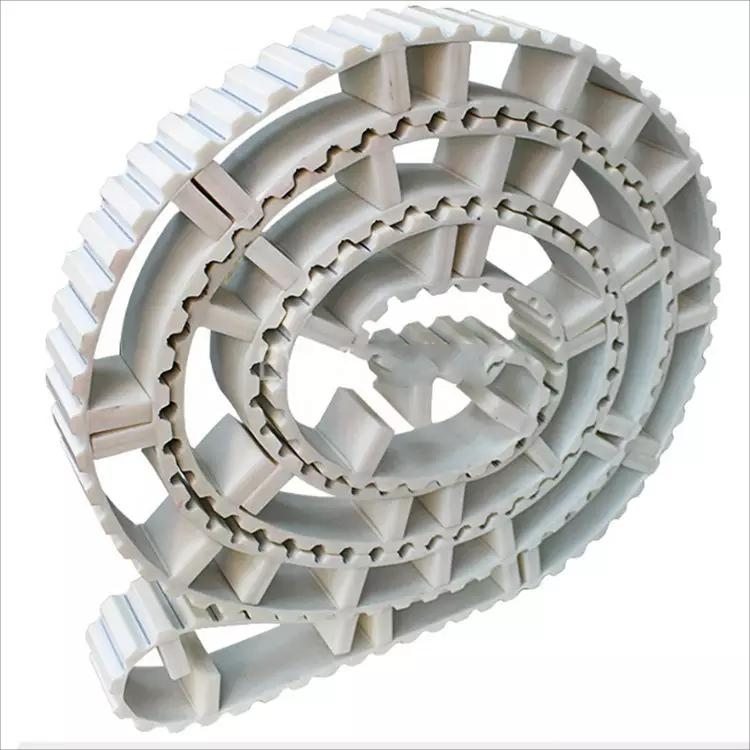

Timing belts with profiles (also known as cleats) allow for innovative design solutions for dividing, stepping and positioning.
They are made of the same abrasion resistant polyurethane as the timing belts. For whatever conveying purpose we can attach them
in any desired number or sequence.
They are made of the same abrasion resistant polyurethane as the timing belts. For whatever conveying purpose we can attach them
in any desired number or sequence.
|
Type
|
P
|
P1
|
ht
|
hs
|
|
L
|
9.525
|
4.65
|
1.91
|
3.6
|
|
H
|
12.7
|
6.12
|
2.29
|
4.3
|
|
MXL
|
2.032
|
1.14
|
0.51
|
1.14
|
|
XL
|
5.08
|
2.57
|
1.27
|
2.3
|
|
XH
|
22.225
|
12.57
|
6.35
|
11.2
|
|
XXH
|
31.75
|
19.05
|
9.53
|
15.7
|
|
T5
|
5
|
2.65
|
1.2
|
2.2
|
|
T10
|
10
|
5.3
|
2.5
|
4.5
|
|
HTD-3M
|
3
|
1.82
|
1.17
|
2.4
|
|
HTD-5M
|
5
|
2.86
|
2.06
|
3.3
|
|
HTD-8M
|
8
|
5.15
|
3.36
|
6
|
|
HTD-14M
|
14
|
9
|
6.02
|
10
|
|
And more...
|
||||
