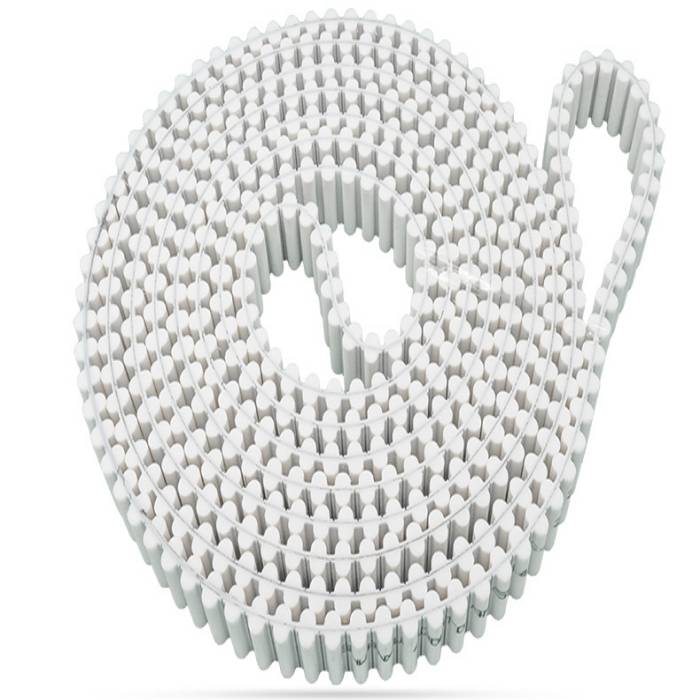

Double-sided tooth polyurethane timing belt
PU timing belt is made of thermoplastic polyurethane, it`s also called as tooth belt, synchronous belt or driving belt, etc. It has strong wear resistance, small production tolerance, reliable transmission and good size stability.
A layer of nylon fabric can be added on the surface of its tooth side and/or back side to guarantee the running specialty in the special applications. It can be also added a thick layer of polyurethane on the back side of the belt to resist corrosion or high loading. Besides, different cords can be used to meet different demands.
Cords options: Steel wires, Kevlar cords
Color options: White, Black, Customized color
Color options: White, Black, Customized color
End types: Open end belt(M style), Joined endless belt(V style), Truly endless belt(Flex style)
Temperature Range: -10℃ to +80℃(110℃ in short time)
Standard Length: 100mm width and 100m length (OEM size is negotiable)
Chemical Property: Resistant to hydrolysis,ozone,ultraviolet,aging,grease,gasoline,acid and most solvents
Standard Length: 100mm width and 100m length (OEM size is negotiable)
Chemical Property: Resistant to hydrolysis,ozone,ultraviolet,aging,grease,gasoline,acid and most solvents
Technical Parameter List (PU Timing Belt)
|
Type
|
Pitch Pb(mm)
|
Tooth height ht(mm)
|
Belt thickness hs(mm)
|
Max width (mm)
|
|
T5
|
5
|
1.2
|
2.2
|
100
|
|
T10
|
10
|
2.5
|
4.5
|
450
|
|
T20
|
20
|
5
|
8
|
150
|
|
AT5
|
5
|
1.2
|
2.7
|
100
|
|
AT10
|
10
|
2.5
|
4.5
|
150
|
|
AT20
|
20
|
5
|
8
|
150
|
|
XL
|
5.08
|
1.27
|
2.3
|
100
|
|
L
|
9.525
|
1.9
|
3.6
|
150
|
|
H
|
12.7
|
2.29
|
4.3
|
460
|
|
XH
|
22.225
|
6.35
|
11.2
|
150
|
|
XXH
|
31.75
|
9.53
|
15.7
|
150
|
|
HTD3M
|
3
|
1.13
|
2.2
|
100
|
|
HTD5M
|
5
|
2.1
|
3.6
|
450
|
|
HTD8M
|
8
|
3.4
|
5.6
|
450
|
|
HTD14M
|
14
|
6.1
|
10
|
150
|
|
STD3M
|
3
|
1.14
|
2.2
|
100
|
|
STD/STS 5M
|
5
|
1.91
|
3.4
|
100
|
|
STD/STS 8M
|
8
|
3.05
|
5.3
|
150
|
|
STD/STS 14M
|
14
|
5.3
|
10.2
|
150
|
|
RPP/RTD/HPPD 5M
|
5
|
2
|
3.8
|
100
|
|
RPP/RTD/HPPD 8M
|
8
|
3.2
|
5.4
|
150
|
|
RPP/RTD/HPPD 14M
|
14
|
6
|
10
|
150
|
|
Width tolerance: ±0.5mm, Thickness tolerance: ±0.2mm
|
||||
PU timing belt is our main product, we have a complete range of models, as long as you are looking for PU timing belts, you can find your needed models from us basically. Our belts are widely used in different equipments and applications, e.g. fully automatic equipments or semiautomatic equipments for textile, packing, printing, glass processing, photovoltaic energy, wood working, slide doors, ceramic production, etc. We can also provide customization service to satisfy customers' different requirements.
